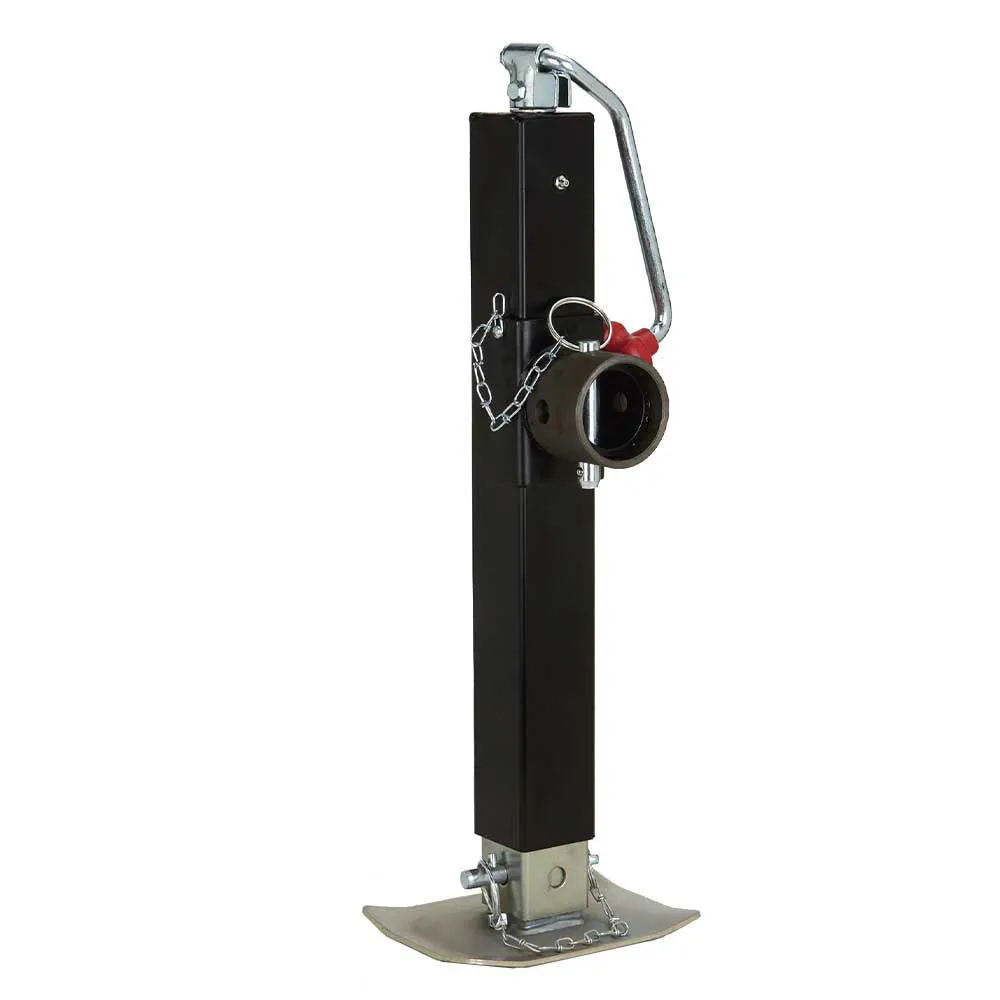

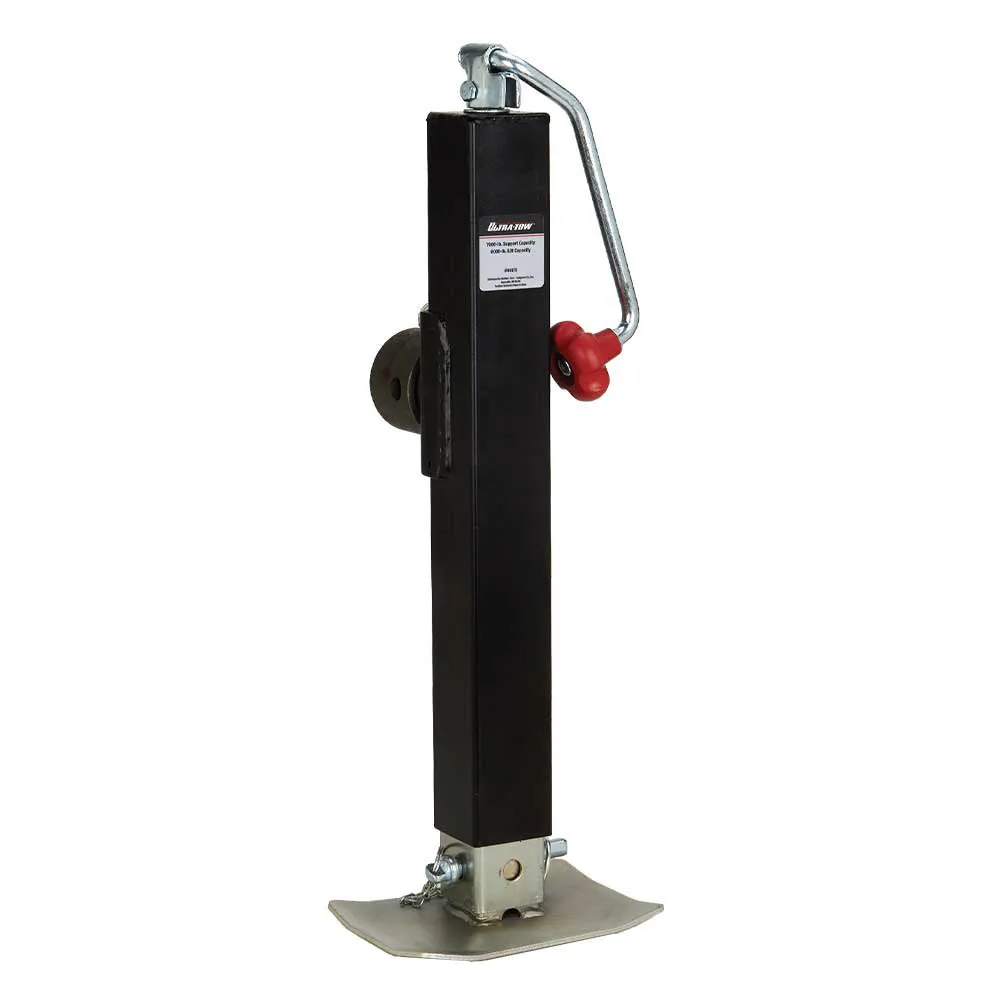

This top-quality Ultra-Tow® Topwind Square Tube-Mount Jack has a weld-on style mount that includes a 2 1/2in. male mating pipe/tube and a pin and lanyard assembly. 15 1/4in. retracted length; 30 1/4in. extended length.
Features
- Includes: (1) Square tube-mount jack
- Durable exterior-grade black powder-coat finish on the outside tube with zinc finish on the inner tube
- Topwind model with a red claw knob on a clear zinc solid bar handle that folds away when not in use
- A grease zerk fitting is built in for easy greasing of the jack
- 5,000-lb. lift capacity; 8,000-lb. support capacity
- 8in. clearance
- A welded-on foot adds stability
Specifications
|
Equipment Type |
Tube-mount Trailer Jack |
| Clearing Height | 8 In. To Jack Top |
| Dry Weight | 23 Lbs |
| Ground Support | Foot Pad |
| Jack Type | Square Tube (topwind Crank) |

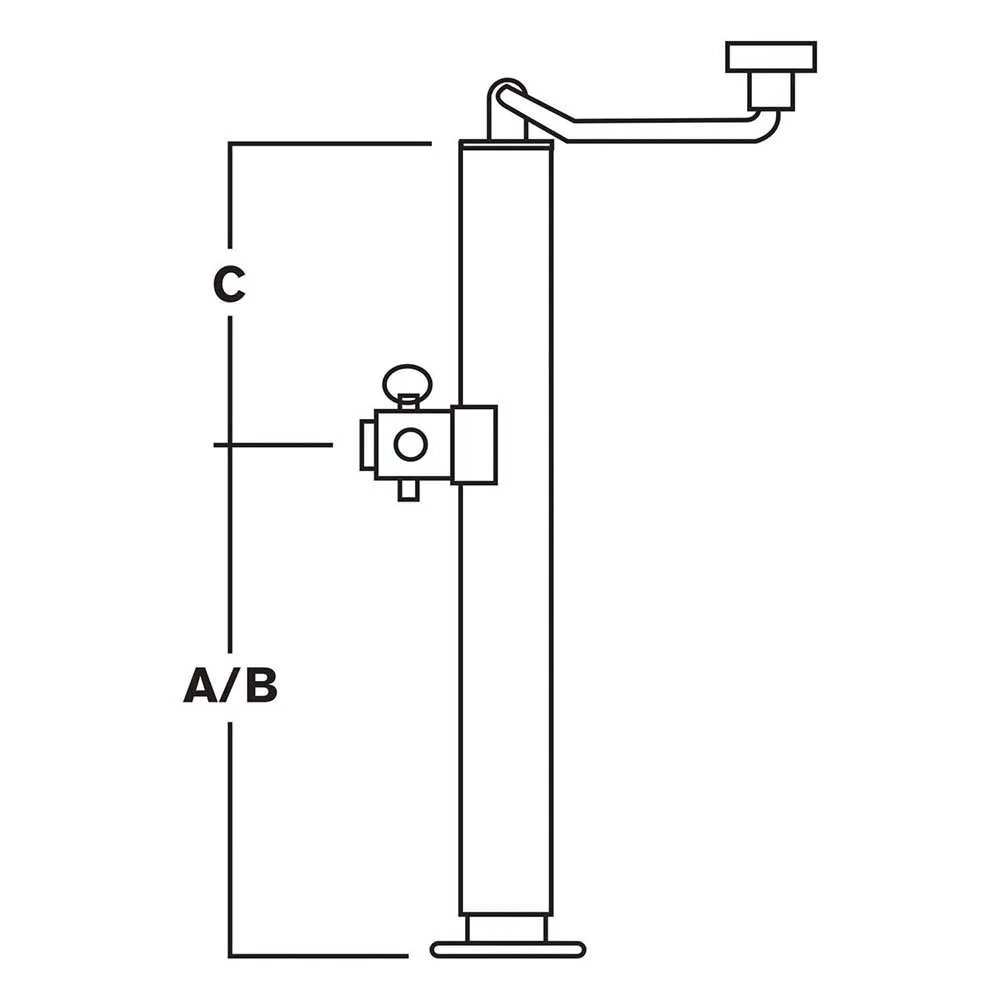

| Length | 15 In. Travel; 15-1/4 In. Retracted; 30-1/4 In. Extended |
| Lift Range | 5,000 Lbs |
| Mounting | Weld-on Pipe Mount |
| Support Capacity | 8,000 Lbs |
