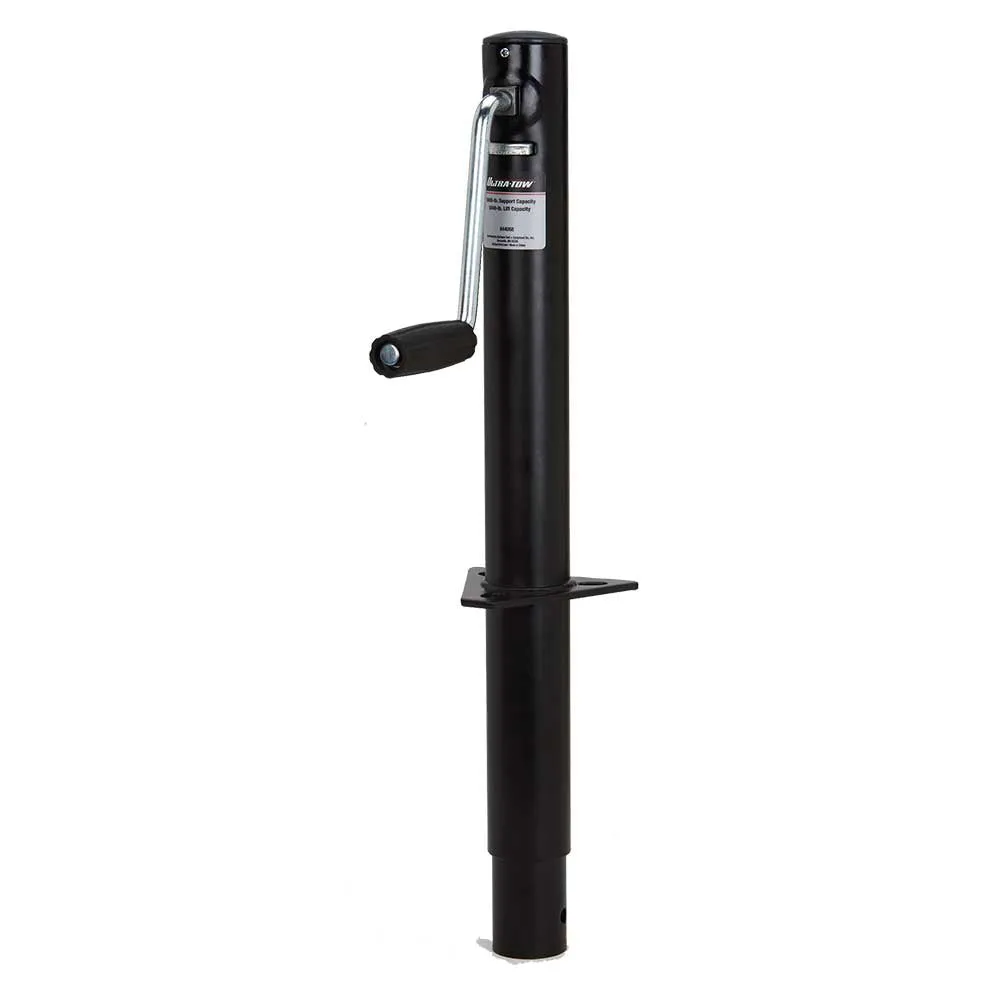

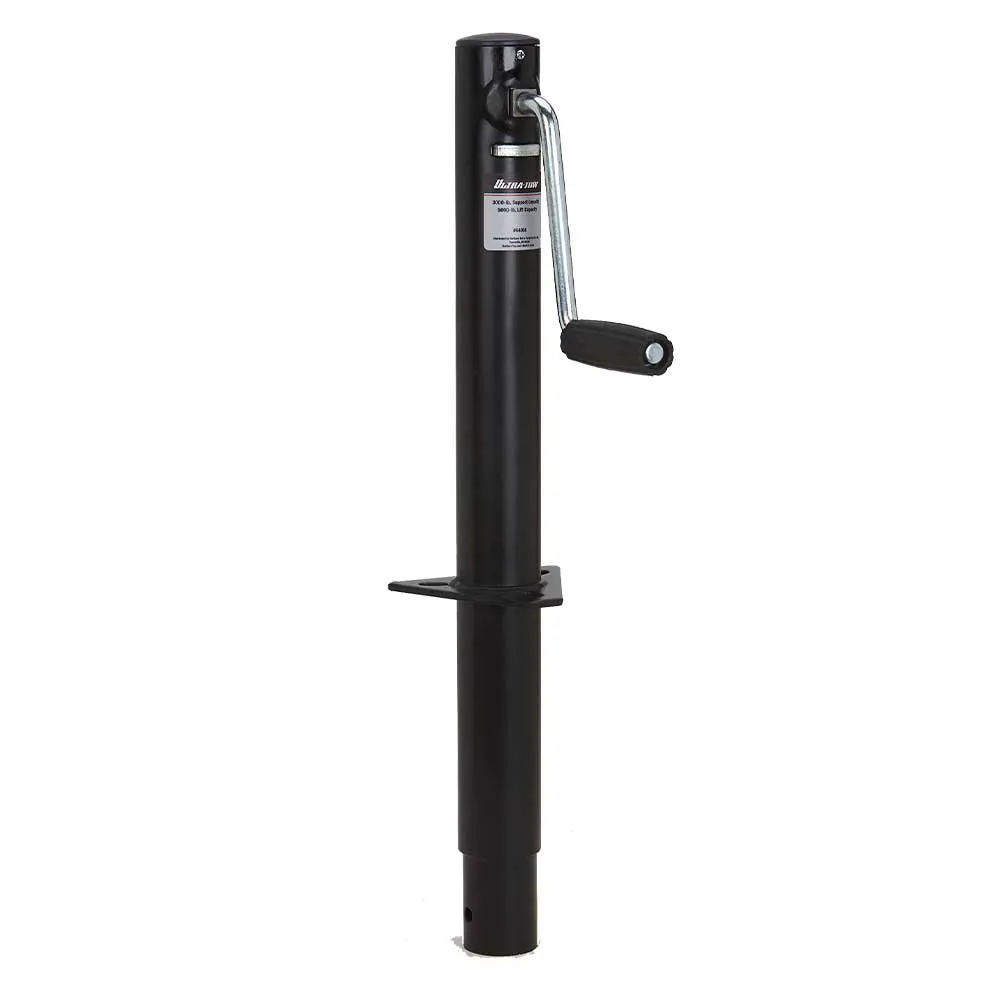

This premium Ultra-Tow® Sidewind A-Frame Round Tube Jack delivers the lifting performance essential for safety and dependability. The jack has a sturdy 2 1/4in. outer tube diameter. Jack foot (Item# 44085, sold separately) provides needed ground support. 9in. retracted length; 23 1/2in. extended length.
Features
- Includes: (1) A-frame jack

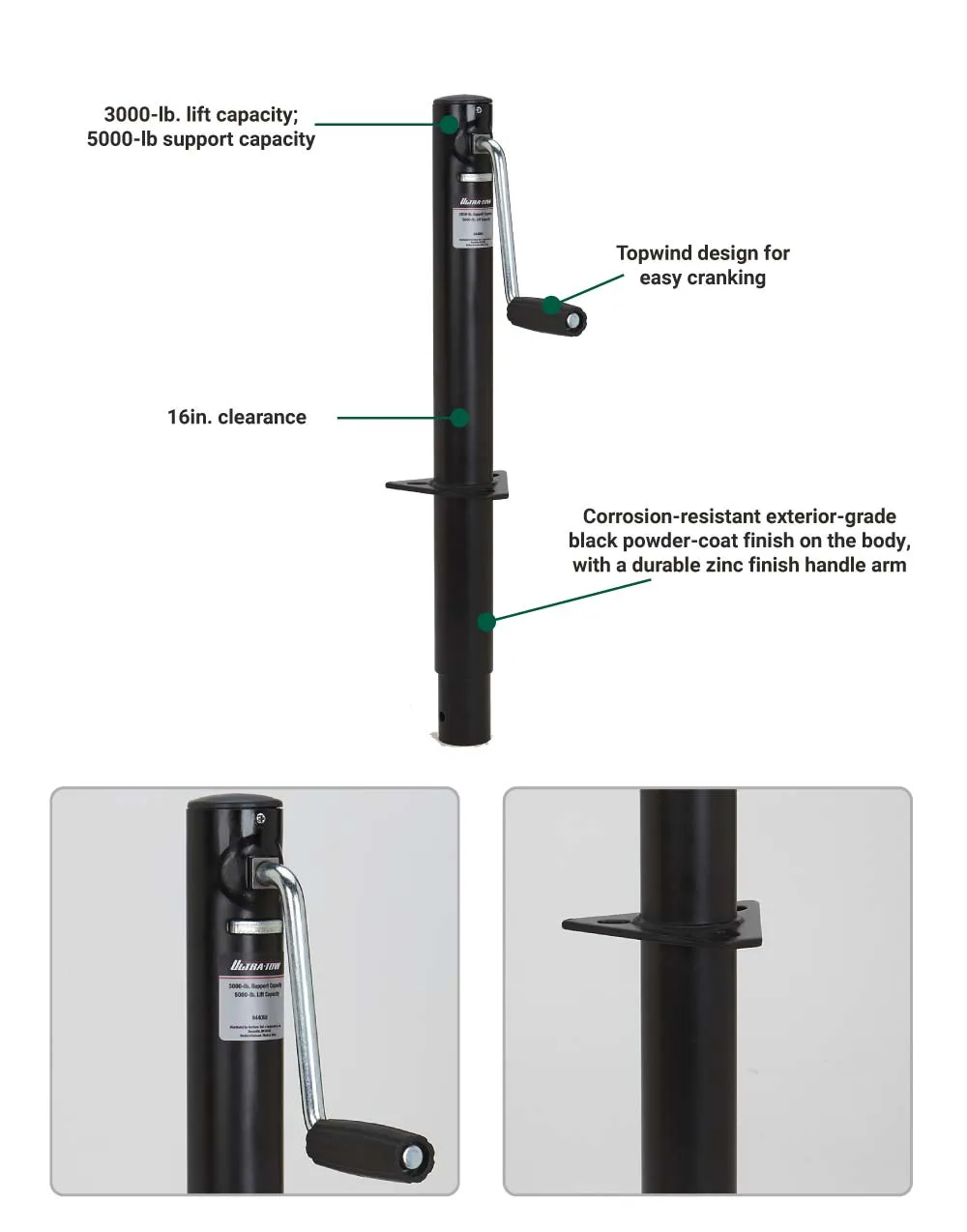

- Corrosion-resistant exterior-grade black powder-coat finish on the body, with a durable zinc finish handle arm
- 3,000-lb. lift capacity; 5,000-lb. support capacity
- 16 in. clearance
- Topwind design for easy cranking

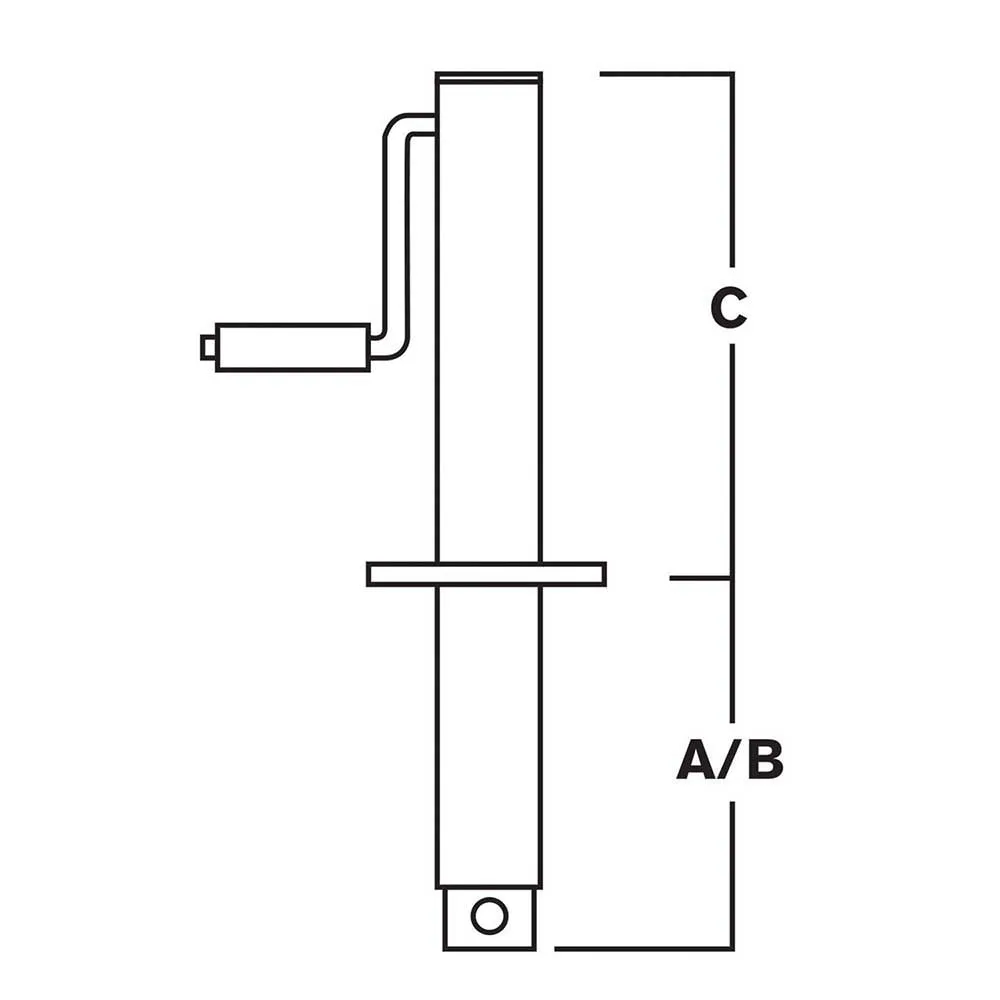

- Measurements: A=Retracted (9in.), B=Extended (23 1/2in.), C=Clearance (16in.) (see corresponding diagram)
Specifications
|
Equipment Type |
A-frame Trailer Jack |
| Clearing Height | 16 In. To Jack Top |
| Dry Weight | 13 Lbs |
| Ground Support | N/a |
| Jack Type | A-frame (sidewind Crank) |
| Length | 15 In. Travel; 9 In. Retracted; 23.5 In. Extended |
| Lift Range | 3,000 Lbs |
| Mounting | A-frame |
| Support Capacity | 5,000 Lbs |
