This premium Ultra-Tow® Topwind A-Frame Round Tube Jack delivers the lifting performance essential for safety and dependability. The jack has a sturdy 2 1/4in. outer tube diameter. Jack foot (Item#s 44082, 44083 and 44085, sold separately) provides needed ground support. 10 1/2in. retracted length; 24 1/2in. extended length

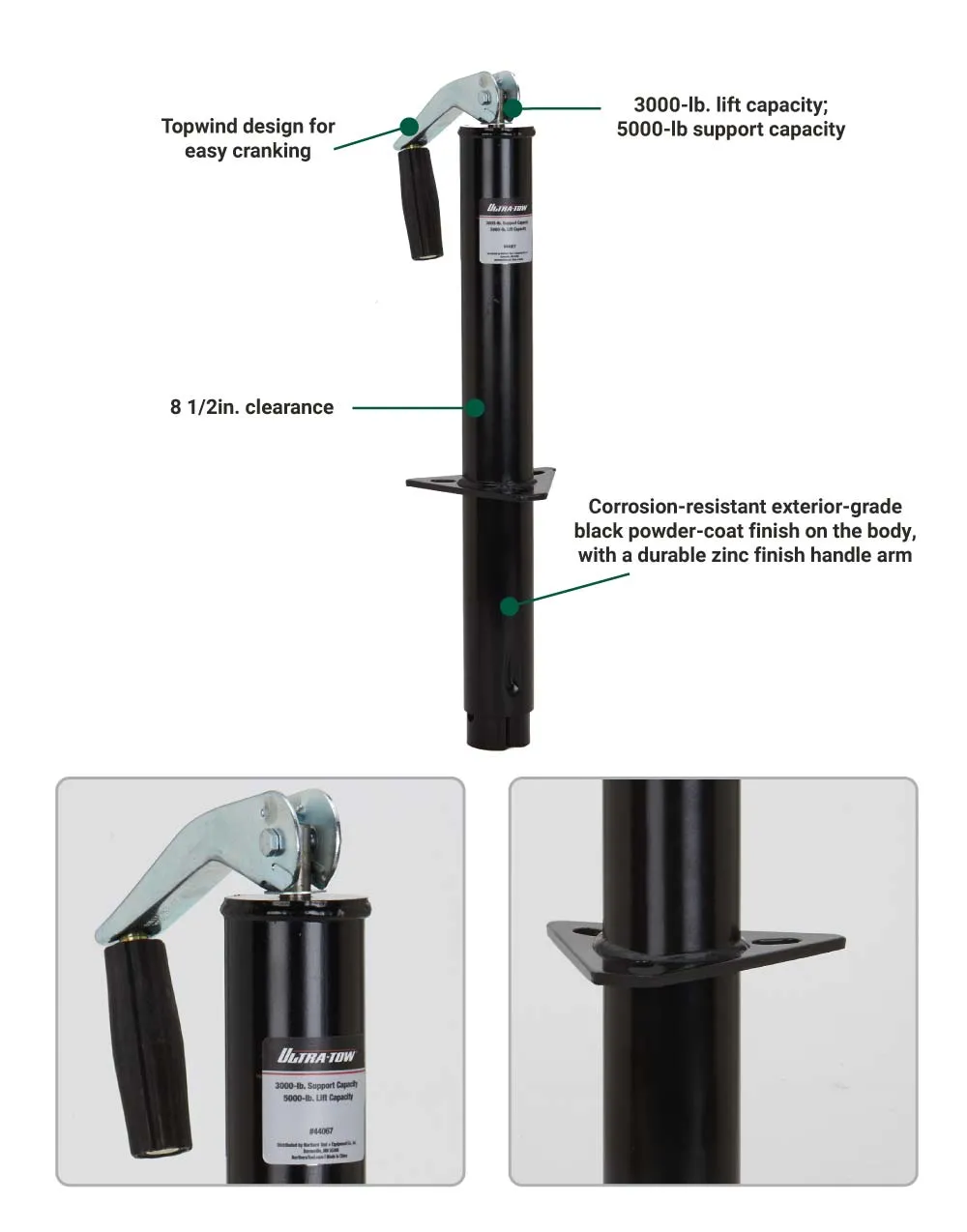

Features

Includes: (1) A-frame jack
Corrosion-resistant exterior-grade black powder-coat finish on the body, with a durable zinc finish handle arm
3000-lb. lift capacity; 5000-lb. support capacity
8 1/2in. clearance
Topwind design for easy cranking

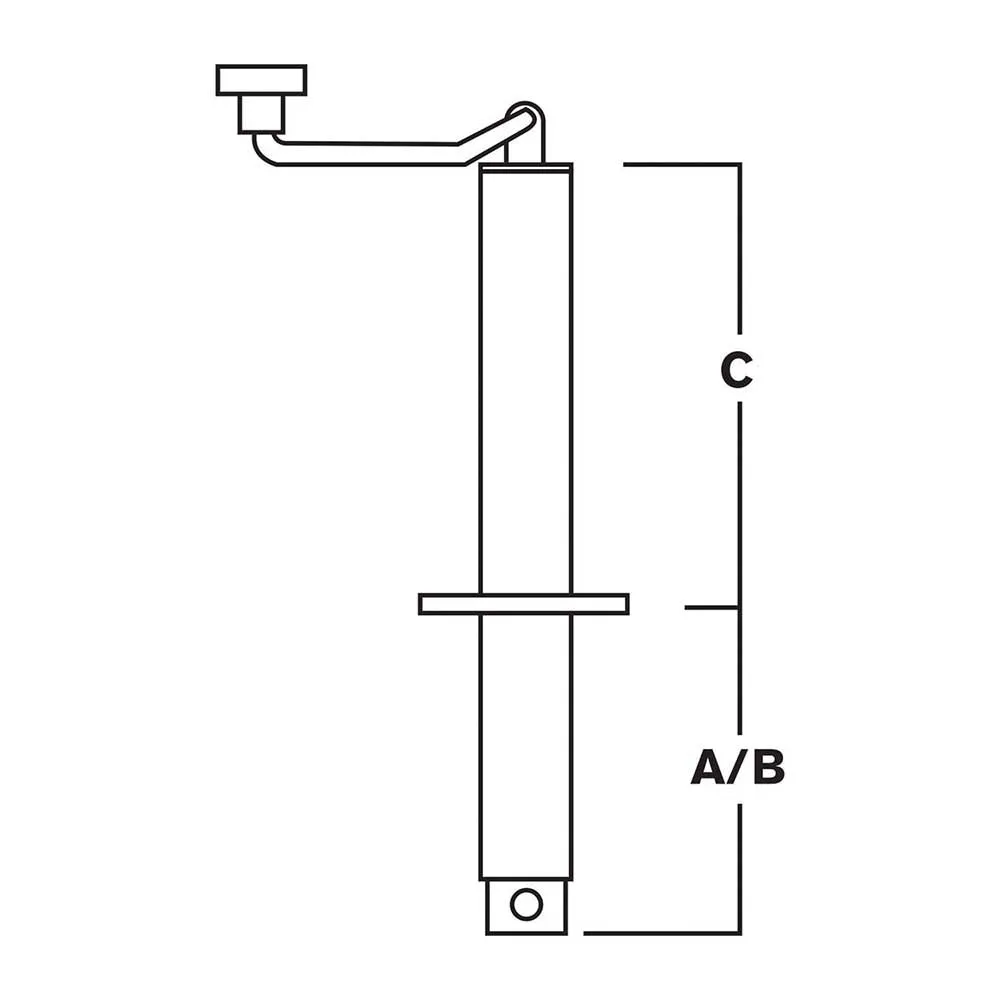

Measurements: A=Retracted (10 1/2in.), B=Extended (24 1/2in.), C=Clearance (8 1/2in.) (see corresponding diagram)

Specifications

Equipment Type	A-frame Trailer Jack
Clearing Height	8.5 In. To Jack Top
Dry Weight	10.5 Lbs
Ground Support	N/a
Jack Type	A-frame (topwind Crank)
Length	15 In. Travel; 10.5 In. Retracted; 24.5 In. Extended
Lift Range	3,000 Lbs
Mounting	A-frame
Support Capacity	5,000 Lbs
